Grab Sample Panels
Grab Sample Panels
Swagelok Northwest (US) offers safe, easy-to-use, and maintain grab sampling solutions optimized for your needs. Our panels and supporting services will help you achieve reliable and representative samples from your systems.
Grab sampling reliability is necessary to optimize your costs and ensure the quality of the products you sell, but finding the right system requires careful analysis of a variety of factors. Need an analysis of your system? Would you like to freshen up on sampling best practices by fluid system experts? Do you need safe, easy-to-use grab sampling systems customized to your exact specifications? Whatever the case, our local team will work with you to determine the proper type of panel and configuration to meet your sampling needs.
Look To Swagelok Northwest (US) for:
- Industry-leading sampling expertise
- Local design, assembly, and support
- Standard designs built according to best practices
- Adaptability to meet system requirements
- Assembly and testing by certified technicians
- One supplier for all components
- Single part numbers for assemblies
Configurable, Local, Reliable Grab Sampling Assemblies
Swagelok Northwest (US) is your local resource for both standard and custom grab sample panels. Our panels not only provide consistent, reliable performance, but are also designed to maximize operator safety, ease of use, and uptime.
We offer two types of grab sampling systems that provide gas and liquid non-slurry sampling service in consistent, reliable packages. Grab sampling panels assembled by Swagelok Northwest (US) technicians can be ordered as a single part number, allowing you to easily purchase sampling solutions that are simple to install, operate, and maintain.
The Swagelok® Grab Sample Module
The Grab Sample Module (GSM) from Swagelok is a sampling panel that uses sealed, metal, pressure-containing cylinders to capture either liquid or gas.

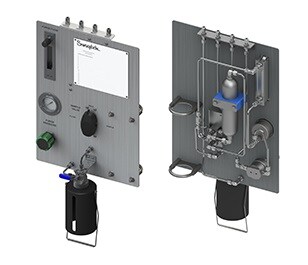

The Swagelok® Grab Sample Liquid
The Grab Sample Liquid (GSL) from Swagelok is a liquid-only sampling system for drawing fluid into a non-pressure containing bottle. These panels have a self-sealing septum cap in applications where the process fluid is not at risk of fractionating when stored at atmospheric pressure.
Designed and Optimized for You
Designed for Ease of Use
Swagelok Northwest (US) grab sampling systems are designed to make operation as easy as possible. Our sampling systems reduce the number of sequencing steps required for sampling and are built for streamlined maintenance.
Designed for Reliable Results
All of our grab sampling panels are assembled with Swagelok components, reducing all potential leak points. Whether it's a closed-loop GSM sampling panel or GSL sampling panel, you can rest assured that the sample is representative.
Designed for Safety
Swagelok Northwest (US) grab sampling systems are designed with features that achieve safe, quality samples while minimizing operator error. Our sampling systems are engineered to prevent overfilling, overpressure conditions, and unintentional dispensing.
Local Solutions. Global Support.
As your local authorized Swagelok sales and service center, our team will work with you to determine the type of panel and the proper configuration to meet your unique requirements. To find the right solution for you, we will:
| Assess Our highly trained and certified team of local fluid system experts will evaluate your current sampling system and assess your needs. |
| Recommend We'll walk you through a checklist of details that include temperature, pressure, materials, and more to ensure you receive a sampling panel that meets your exact specifications. |
| Configure Using our standard panel designs as a platform, we will work with your team to make changes in layout, add products within existing schematics, convert to larger/smaller tube sizes, and discuss flow/pressure drop calculations. |
| Assemble We take the work of sampling system assembly off your plate by fabricating the system and testing for reliability in-house. Every local Swagelok technician undergoes comprehensive training and certification to ensure your sample panel adheres to strict guidelines and to your exact specifications. |
| Train Our fluid system experts are committed to helping you work safer and smarter, providing hands-on training on use and maintenance, enabling your team to optimize your sampling system. |
Contact Us to Learn More
Whether you need reliable grab sampling assemblies, supporting services to help optimize your sampling system, or training on sampling best practices, Swagelok Northwest (US) is here to help.
